Black Corrugated Sidewall Conveyor Belt NN100 NN150 NN200

The sidewall conveyor belt is a large inclination corrugated sidewall conveyor belt. The sidewall conveyor belt was first developed by a British company and started to be popularized.

1. Basic concepts

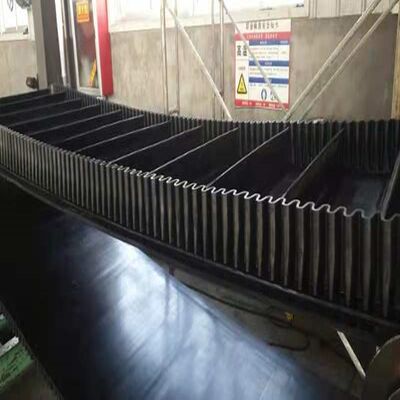

The large inclination corrugated sidewall belt is composed of three parts: a base belt, a sidewall, and a diaphragm. The ribs play the role of preventing the material from slipping and falling. In order to easily bypass the drum, the ribs are designed to be corrugated; the transversal partitions are used to support the material. In order to achieve large inclination transportation, the T-type TC type is adopted. The ribs and the diaphragm are connected to the base belt by a secondary vulcanization method, which has a high connection strength.

2. Varieties and specifications

Corrugated sidewall conveyor belt (ordinary large-incline corrugated sidewall conveyor belt) varieties: According to the different covering rubber performance, it can be divided into ordinary type, heat-resistant type, flame-retardant type, cold-resistant type, acid-base resistant type, oil-resistant type, etc.
Corrugated rib conveyor belt (ordinary large inclination corrugated rib conveyor belt) specifications:
(1) Core material: CC-56, NN100, NN150, NN200, NN300, NN400
(2) Bandwidth: 100mm-2400mm
(3) Cloth layer: 2-10 layers
(4) Cover rubber: working surface: 1.5-8mm non-working surface: 0mm-4.5mm

<
